Abrasive Flow Machining (AFM)

AFM is useful in automotive, aerospace, and many other industries that demand exceptional surface finishes for increased air flow.

Abrasive Flow Machining

  • Abrasive Flow Machining (AFM) is a precision metal finishing process used to smooth and deburr complex internal passages and edges of metal parts. In this process, a semi-solid abrasive ladened media is forced through or across the workpiece, effectively polishing and refining surfaces in hard-to-reach areas that traditional machining methods cannot access. AFM is ideal for improving the flow characteristics, surface finish, and dimensional accuracy of components used in industries such as aerospace, automotive, medical, and hydraulic systems.

  • The AFM process can effectively handle a wide range of metals, including but not limited to:

    • Aluminum

    • Stainless Steel

    • Carbon Steel

    • Titanium

    • Inconel and Other Nickel Alloys

    • Brass and Bronze

    • Copper

    These metals respond well to the abrasive media used in AFM, ensuring precise surface finishing even in hard-to-reach areas.

    • Achieves precise internal surface finishing where traditional methods cannot reach

    • Produces uniform surface roughness (Ra) critical for semiconductor, gas components, and many other industries

    • Enhances flow efficiency by smoothing internal passages, reducing turbulence and pressure drop

    • Removes microscopic burrs and imperfections that can affect component performance and lifespan

    • Extends component life by minimizing stress concentrators inside fluid or gas pathways

    • Improves sealing surfaces, ensuring better reliability in high-pressure environments

    • Customizable process parameters to meet strict industry-specific surface finish tolerances

    • Reduces manual labor and rework, resulting in faster lead times and consistent quality

    • Supports compliance and standards needed in many intricate and important parts

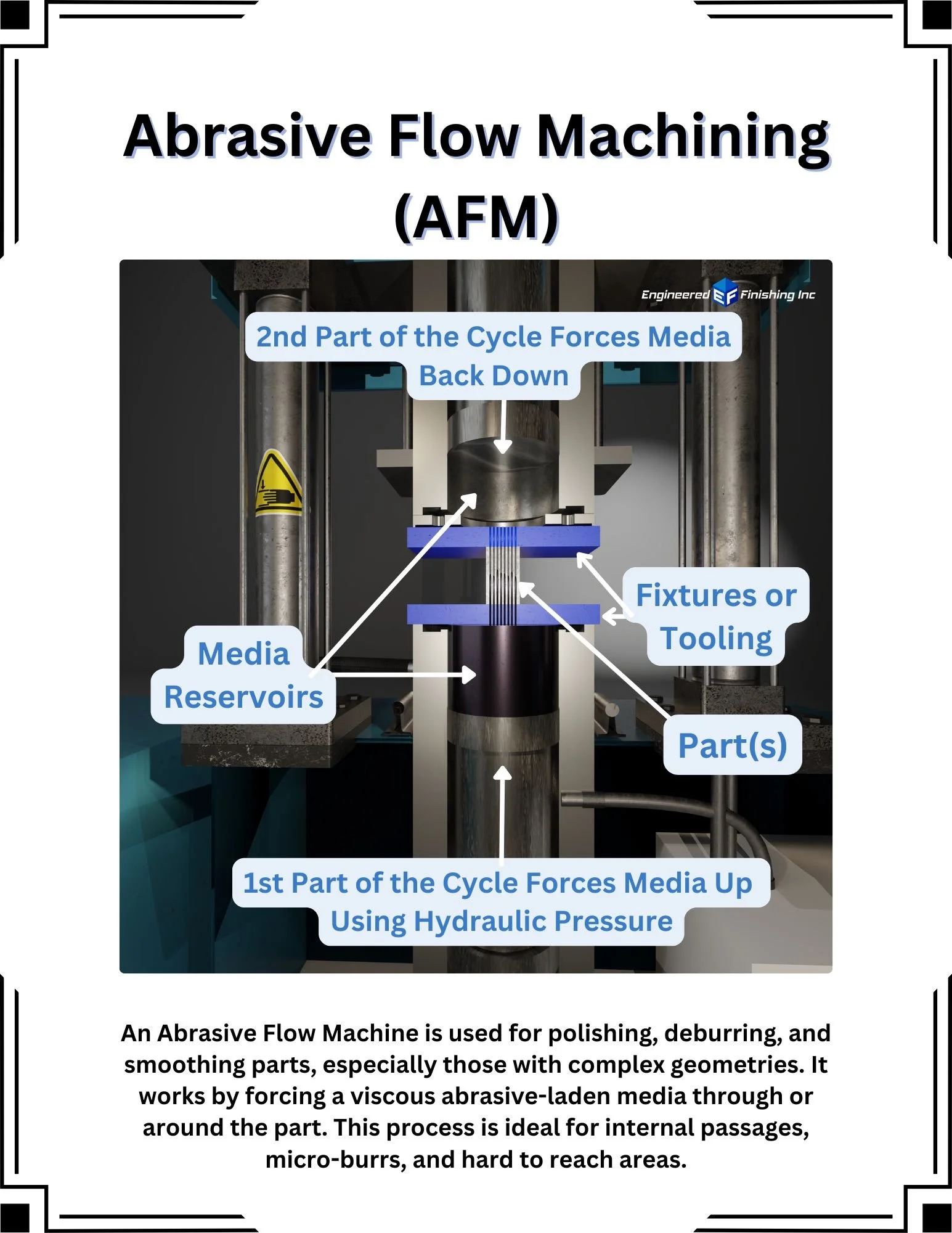

AFM machines typically show two opposing hydraulic cylinders with a fixture or workpiece mounted in the center. Improving flow efficiency in components like fuel injectors, hydraulic manifolds, and extrusion dies.

AFM Process

  • We are Engineered Finishing due to our expertise and experience in designing and fabricating AFM tooling specifically for each part(s).

    Once the tooling is dialed in, we begin the setup process:

    • Secure the part in the fixture/tooling.

    • Mount the fixture between the upper and lower media cylinders.

    • The fixture is clamped tightly in place, and seals (O-rings or gaskets) are engaged to prevent media leakage. This ensures all media pressure is directed through the part, not around it.

    • Verify fit and pressure seals and adjust accordingly.

    • Carrier (Base Material):

      • A polymer or gel-like substance that gives the media its flow and pressure characteristics.

      • Can be soft, medium, or stiff depending on the application.

    • Abrasive Particles:

      • Provide the cutting action.

      • Common abrasives include:

        • Silicon Carbide (SiC) – general-purpose, aggressive cutting

        • Aluminum Oxide (Al₂O₃) – fine finishing and polishing

        • Boron Carbide – hard materials and high wear resistance

        • Diamond – precision polishing of very hard materials

    1. Pressure Application:
      Hydraulic rams apply pressure, forcing the media to flow from one cylinder, through the part, and into the opposite cylinder.

    2. Abrasive Action:
      As the media flows through internal passages or over surfaces, abrasive particles grind away microscopic material, removing burrs and smoothing surfaces.

    3. Cycle Completion:
      The rams reverse direction, pushing the media back through the part in the opposite direction for even, consistent finishing. This finishes 1 full cycle.

    4. Uniform Finishing:
      The alternating flow ensures uniform surface improvement across all internal features and hard-to-reach areas.

    5. Cycle Completion:
      After the programmed number of cycles, the flow stops, and the fixture is removed for cleaning and inspection.

Request a Quote
This is a picture of internal passages that afm created a mirror like finish.

Benefits and Industries

    • Finishes complex internal passages unreachable by hand or tools

    • Produces consistent, high-quality surface finishes

    • Improves flow characteristics in fuel, hydraulic, and air systems

    • Enhances fatigue strength by removing surface stress risers

  • The process can be precisely controlled by adjusting:

    • Flow pressure

    • Media viscosity

    • Abrasive type and concentration

    • Cycle time and number of strokes

    • Aerospace

      • Polishing and deburring turbine blades, fuel system components, and hydraulic manifolds

      • Improves airflow, reduces turbulence, and enhances fatigue strength

    • Automotive & Motorsports

      • Cylinder heads, intake/exhaust manifolds, fuel injectors, and transmission parts

      • Boosts flow efficiency and performance consistency

    • Medical & Dental Device Manufacturing

      • Finishing surgical instruments, orthopedic implants, stents, and precision housings

      • Ensures smooth, clean, and burr-free surfaces for safety and performance

    • Additive Manufacturing (3D Printing)

      • Post-process finishing of metal printed parts to remove layer lines and internal roughness

      • Enhances dimensional accuracy and surface quality

    • Military & Defense

      • Precision finishing of weapon components, housings, and hydraulic systems

      • Improves reliability and performance under extreme conditions

    • Power Generation & Energy

      • Finishing turbine components, fuel nozzles, and flow control parts

      • Optimizes flow and prevents erosion or cavitation damage

    • Electronics & Computing Hardware

      • Deburring and polishing of micro-components, heat sinks, and housings

      • Ensures tight tolerances and smooth surface finishes

    • Industrial & Precision Manufacturing

      • Valves, pumps, dies, molds, and nozzles

      • Extends tool life and improves flow characteristics

    • Firearms & Sporting Equipment

      • Smoothing bores, triggers, and precision assemblies for improved accuracy and function

    • Aerospace Additive & R&D Labs

      • Used in prototype and testing environments to perfect surface finishes before scaling to production
